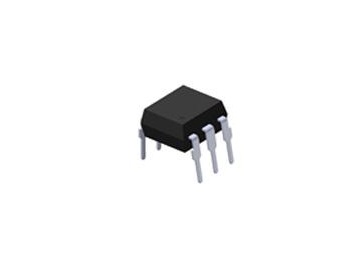

- 光晶体管/6Pin DIP-AC

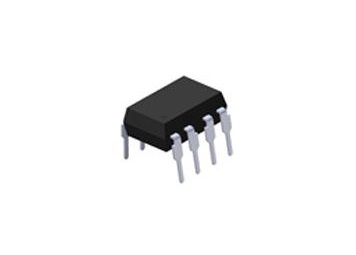

- 光晶体管/8Pin DIP-DC

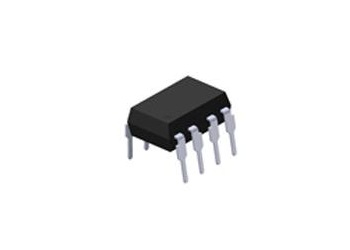

- 高速/8Dip

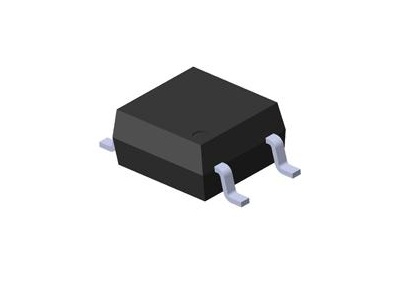

- SMD
特性:
输入和输出之间的隔离电压
沿面距离>7.62毫米
应用:
AC线路监控
电话线接口
特性:
双通道
电流传输比(CTR:50〜600%,在IF =5mA
VCE=5V)
输入和输出之间的隔离电压
应用:
系统设备,测量仪器
家用电器,如风扇加热器等
监控和检测电路
不同电位和阻抗的电路之间的信号传输
特性:
高电流传输比,2000%典型
输入和输出之间的隔离电压
保证性能从0°C至70°C
应用:
逻辑隔离
RS-232线路接收器
低输入电流线路接收器
微处理器隔离
电流环接收器
The EL M4XX A is solid state relays containing an AIGaAs infrared LEDs on the light emitting side (input side) optically coupled to a high voltage output detector circuit. The detector consists of a photovoltaic diode array and MOSFETs on the output side. The single channel configuration is equivalent to 1 form A EMR. The devices in a 4-pin small outline SMD package.
特性:
· Compliance Halogen Free(Br < 900ppm. Cl < 900ppm. Br+Cl < 1500ppm)
· Normally open signal pole signal throw relay
· Small 4pin SOP package in the 400V & 600V load voltage series
· Lower operation current
· Low-level off state leakage current
· Low on resistance
· Compliance with EU REACH
· Pb free and RoHS compliant
· UL and cUL UL and cUL UL and cULUL and cULUL and cUL (approved)
· VDE (approved)
· SEMKO (approved)
· NEMKO (approved)
· FIMKO (approved)
· CQC (approved)
应用:
· Exchange equipment
· Measurement and testing equipment
· FA/OA equipment
· Industrial controls
· Security
